Our We offer a wide range of Axial Piston Pumps to our honorable clients. They are available in various specifications and can be customized as per the needs of the clients. These Axial Piston Pumps are procured from the reliable manufacturers who use best quality materials for manufacturing these products. Clients can avail these products at competitive prices.

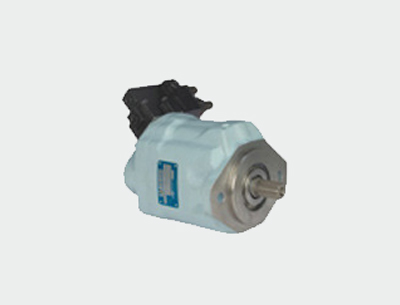

| Series | J9V009 |
| Continuous Operating Pressure (psi) | : 4060 |
| Continuous Operating Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 0.55 |
| Max. Displacement (cm³/rev) | .9 |
| Maximum Speed (rpm) | 0.55 |
| Max. Flow @ 1500rpm ( gpm) | 3.66 |
| Max. Flow @ 1500rpm ( ipm) | 13.5 |
We offer a wide range of Axial Piston Pumps to our honorable clients. They are available in various specifications and can be customized as per the needs of the clients. These Axial Piston Pumps are procured from the reliable manufacturers who use best quality materials for manufacturing these products. Clients can avail these products at competitive prices
Features:

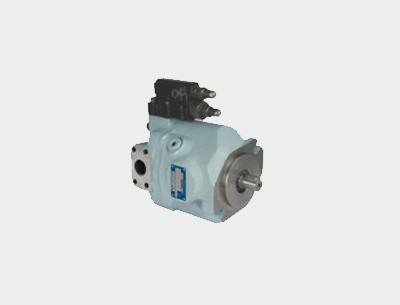

| Series | J9V018 |
| Continuous Operating Pressure (psi) | 4060 |
| Continuous Operating Pressure (bar) | 280 |
| Max. Displacement (in³/rev) | 1.10 |
| Max. Displacement (cm³/rev) | 18 |
| Maximum Speed (rpm) | 3300 |
| Max. Flow @ 1500rpm ( gpm) | 7.1 |
| Max. Flow @ 1500rpm ( ipm) | 27 |
Axial Piston Pump are available with cast iron flanges and covers version to reduce the noise level. Hydrostatic balance takes up axial slack through the pressure supplied to a defined bushing area. Bearings lubrication is automatic and proportional to the pump operating pressure. Each pump can be assembled whether with standard flanges (European, German or SAE) or with special ones (ZF, Perkins and Renault), with tapered, cylindrical or splined shafts. Furthermore it is possible to assemble covers with pressure relief valves and flow control valves. All standard pumps are arranged to drive a supplementary pumps, using the coupling kits, available also in the short version

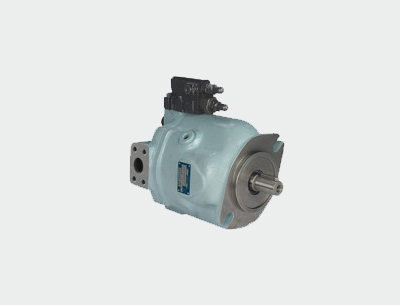

| Series | J9V027 |
| Continuous Operating Pressure (psi) | 4060 |
| Continuous Operating Pressure (bar) | 280 |
| Max. Displacement (in³/rev) | 1.65 |
| Max. Displacement (cm³/rev) | 27 |
| Maximum Speed (rpm) | 3000 |
| Max. Flow @ 1500rpm ( gpm) | 10.7 |
| Max. Flow @ 1500rpm ( ipm) | 40.5 |
l Piston Pump Axial Piston PumpAsk For Price We hold immense expertise in manufacturing, distributing and supplying a broad range of Axial Piston Pumps. Our product is manufactured making use of premier-grade raw material and advanced technology at our end. Owing to its corrosion resistance as well as superior finish features, the offered product is highly demanded in the market. Apart from this, clients can avail the entire range at nominal prices within given span of time.
Features:
| Series | J9V045 |
| Continuous Operating Pressure (psi) | 4060 |
| Continuous Operating Pressure (bar) | 280 |
| Max. Displacement (in³/rev) | 2.74 |
| Max. Displacement (cm³/rev) | 45 |
| Maximum Speed (rpm) | 2600 |
| Max. Flow @ 1500rpm ( gpm) | 1.77 |
| Max. Flow @ 1500rpm ( ipm) | 67 |
