Our customers can avail from us a broad array of Vane Motors such as Vane Motor These are designed and manufactured in accordance with the set industry standards by using the finest grades of components. These offer outstanding performance under pressure as high as 2500 psi and a wide range of displacement from 3.97 to 8.81in3/rev. Our esteemed customers are offered these at very reasonable rates
Features:
| Series | VM3B / VM3B1 |
| Max. Pressure (psi) | 3000 |
| Max. Pressure (bar) | 210 |
| Max. Displacement (in³/rev) | 0.56 - 2.26 |
| Max. Displacement (cm³/rev) | 9 - 37 |
| Maximum Speed (rpm) | 4000 |
| Torque Nm / bar | 0.15 - 0.58 |
| Mounting Standard | SAE - A |
Our organization holds specialization in providing a broad array of Vane Motors to the clients. Further, we offer customization of these products as per client’s specifications.
Features:

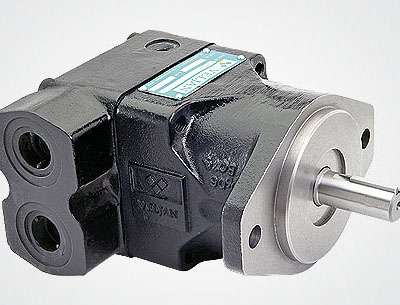

| Series | VM4C / VM4C1 |
| Max. Pressure (psi) | 2500 |
| Max. Pressure (bar) | 175 |
| Max. Displacement (in³/rev) | 1.49 - 4.89 |
| Max. Displacement (cm³/rev) | 24 - 80 |
| Maximum Speed (rpm) | 4000 |
| Torque Nm / bar | 0.39 - 1.27 |
| Mounting Standard | SAE - B |
O Motor - M4D Vane Motor - M4DAsk For Price With sincerity and hard work of our professionals, we have carved a niche for ourselves in this domain by offering Vane Motors. The offered motors are designed using optimum quality raw material and advanced technology. In addition to this, our offered products pass through various tests under the supervision of quality controllers, in order to ensure their flawlessness. Besides, these are made available as per client's specifications.
Features:

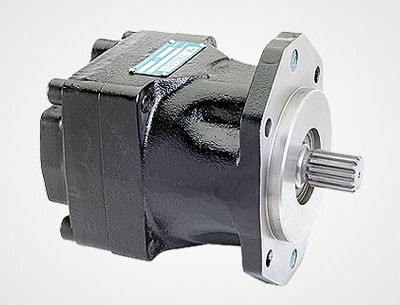

| Series | VM4D / VM4D1 |
| Max. Pressure (psi) | 2500 |
| Max. Pressure (bar) | 175 |
| Max. Displacement (in³/rev) | 3.97 - 8.815 |
| Max. Displacement (cm³/rev) | 65 - 144 |
| Maximum Speed (rpm) | 4000 |
| Torque Nm / bar | 1.04 - 2.30 |
| Mounting Standard | SAE - C |
ur organization holds specialization in providing a broad array ofVane Motors"to the clients. Further, we offer customization of these products as per client’s specifications.
Features:

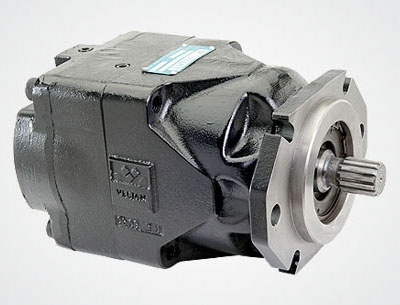

| Series | VM4E / VM4E1 |
| Max. Pressure (psi) | 2500 |
| Max. Pressure (bar) | 175 |
| Max. Displacement (in³/rev) | 9.67 - 13.55 |
| Max. Displacement (cm³/rev) | 158 - 222 |
| Maximum Speed (rpm) | 3600 |
| Torque Nm / bar | 2.52 - 3.53 |
| Mounting Standard | SAE - C |
